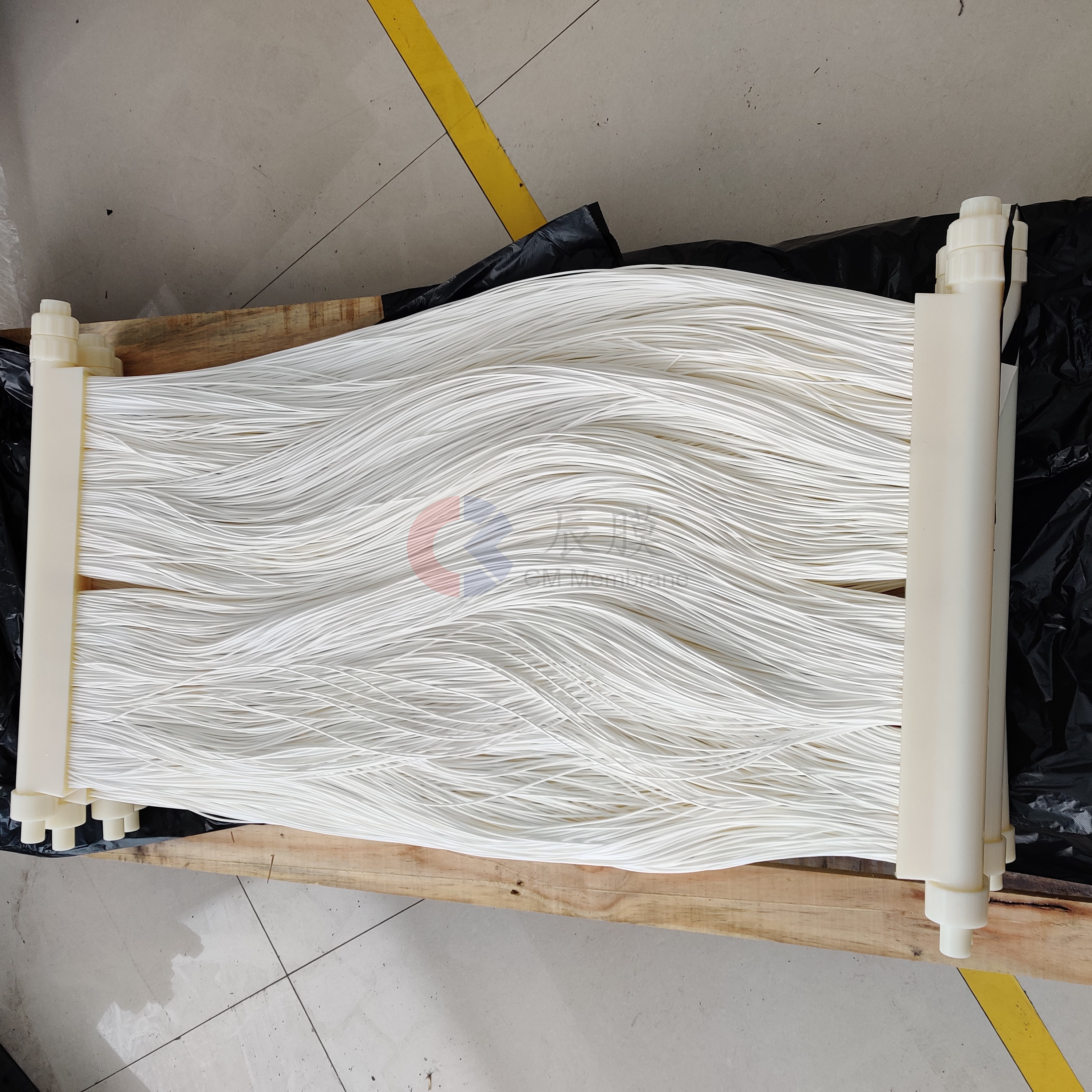

15㎡ / 20㎡ - PVDF MBR Membrane Element

Share to:
MBR is a new water treatment technology which combines membrane separation unit with biological treatment unit. It has broad application prospects.
MBR is mainly composed of bioreactor and membrane module. Sewage first enters the bioreactor. Pollutants are degraded by microorganisms in the reactor.
Membrane module is mainly used to intercept microorganisms and filter effluent.
  • 1500(H)*534(L)*46(W)mm
Area:
Pore Size:
Quantity:

CM-PVDF (outside-in type) MBR membrane characteristic:

1. Lined support pipe (materials PET ), it’s made the PVDF material fibers more strengthen.

2. Stronger anti-pollution performance.

3. Membrane wire has high mechanical strength and strong tensile strength.

4. For different wastewater, the designed average flow rate can reach 15-20 L/m2/H, and the filtration accuracy can reach 0.2-0.03 um.

5. Good oxidation resistance, high peeling strength, when PH works well in the range of 2-10.

6. MBR can effectively intercept microorganisms and improve the treatment effect of intractable organic matter

.


010 1

Model

A(mm)

B(mm)

C(mm)

D(mm)



CM-010-I



1000



534



32



46



CM-015-I



1500



534



32



46



CM-020-I



2000



534



32



46



ACCESSORIES:


010 2




CONNECTING TYPE:

010 3



Model

Diameter (mm)

Area()

Note

CM-010-I-10

2.5

10

Regular type

CM-010-I-12.5

2.0

12.5

Regular type

CM-010-I-16.5

2.0

16.5

Maximum   size

CM-015-I-15

2.5

15

Regular type

CM-015-I-20

2.0

20

Regular type

CM-015-I-26.6

2.0

26.6

Maximum   size

CM-020-I-20

2.5

20

Regular type

CM-020-I-30

2.0

30

Regular type

CM-020-I-34.61

2.0

34.61

Maximum   size



NoteCan also customize other size according to clients request.

Brand:

CM MBR (OEM Available)

Max. TMP:

50 Kpa

Operation Pressure:

-0.01-0.06 Mpa

Operation TMP:

10-40 Kpa

Operation Temp:

10-40

PH  Range:

2-10

Design Flux:

10-30 LMH

NaClO Tolerance:

5000 ppm

Operation Mode:

Outside-in

Cl- Tolerance:

5000 ppm

Material:

RPVDF

Peeling strength:

≥ 1.0Mpa

Pore Size:

0.2 μ MF (OD 2.5mm)

0.03-0.06 μUF (OD 2.0mm)

Outlet water turbidity:

≤ 3NTU (MF)

< 1NTU (UF)


Domestic, Sewage wastewater treatment

Chemical, textile wastewater treatment

Electronic wastewater treatment

Garbage wastewater treatment

Biochemical wastewater treatment

High concentration organic wastewater treatment

High SS wastewater treatment
