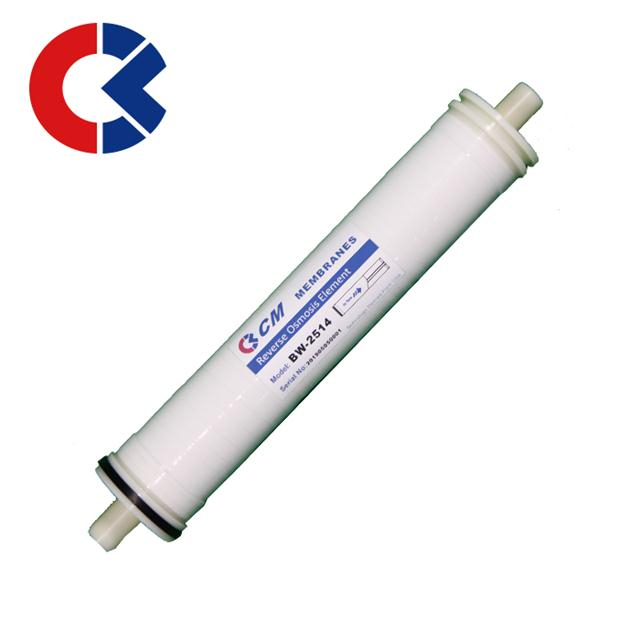

CM-BW-2514 Brackish water Ro membranes

Share to:
CM High Rejection Reverse Osmosis Membranes are designed to provide high salt rejection for tap water, surface water, underground water, municipal water and other light brackish water applications at standard operating pressure of 225psi. The high rejection membranes offer better salt rejection than low pressure elements but require more operating energy.
Quantity:

一,High Rejection RO Membranes—BW Series

CM High Rejection Reverse Osmosis Membranes are designed to provide high salt rejection for tap water, surface water, underground water, municipal water and other light brackish water applications at standard operating pressure of 225psi. The high rejection membranes offer better salt rejection than low pressure elements but require more operating energy.


二,Characteristics

CM RO Membranes are available in customized sizes as well as standard sizes. All the elements are shipped in dry condition for ease of storage and handling.


Advantage

☞  Up to 99.5% of total dissolved solids removed.

☞  100% vacuum tested.


☞  Superior quality and consistent performance.


☞  Cost savings.


☞  Standard sizes to fit in commonly available housings.


☞  Using the most advanced membrane film technology and manufacturing processes.


三,

Model No.

Average Permeate Flow Rate GPD(T)

Active Membrane Area ft²(m²)

Nominal Salt Rejection(%)

NaCl (ppm)

Appiled Pressure PsiMpa

Racovery Rate(%)

CM-BW-2514

200(0.76)

8(0.7)

99.5

2000

225(1.55)

5

CM-BW-2521

325(1.23)

13(1.2)

8

CM-BW-2540

850(3.2)

28(2.6)

15

CM-BW-4014

525(1.99)

22(2.0)

5

CM-BW-4021

900(3.41)

36(3.3)

8

CM-BW-4040

2400(9.1)

78(7.2)

15

CM-BW-8040

10500(40.0)

365(34)

15



Note: Performance specifications based on 2000ppm NaCl feed water, 225psi(1.55MPa) applied pressure, 25°C(77°F), feed water PH 7-8 and recovery listed in the table above. Single element permeate flow may vary ±20%.


Shanghai CM Environmental Technology Co., Ltd. is a high-tech enterprise specializing in reverse osmosis membrane, ultrafiltration membrane, nanofiltration and MBR membrane assembly, membrane production and sales service, and also a system design and proprietary service provider.
